Guillotine System
Guillotine System

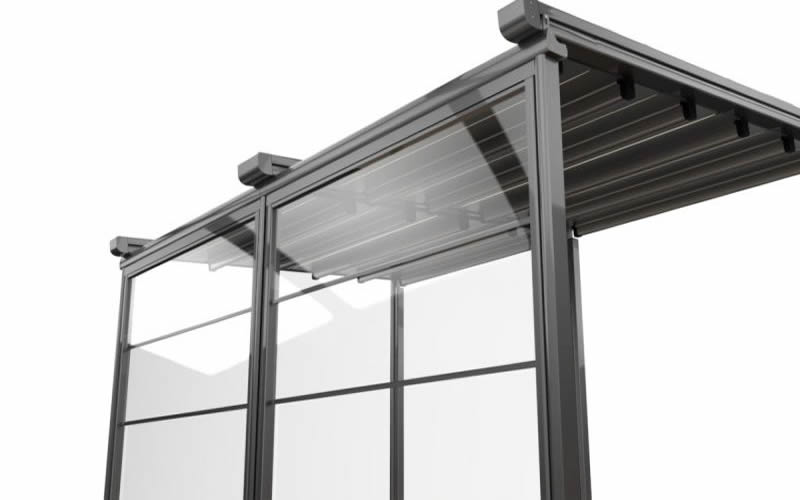

Guillotine System, which we design and manufacture, is a vertical sliding system that can be implemented in confined spaces such as kitchens or lofts with no room for sash swing, and in detached houses and villas to achieve added value in terms of aesthetics. In addition, it is the PVC window system that is preferred throughout the restoration period of historical buildings where the authenticity of the ambiance is desired to be preserved. It can be produced only with window size 70cm width and 140cm height
Guaranteed Safe Checkout
GENERAL INFORMATION
*{
font-family: roboto !important;
}
- Main Profile & Efficiency
- Wind Load Resistance
- DIAMOND 60 systems successfully passed the safety test of 2.000 Pa (1655 km/h) wind load resistance.
| Frame & Sash
Profile Width - mm |
Number of Seal | Kind of Seal | Number of outside
Chambers |
Sound Insulati on – DB Decibels | Air
Permeabi lity class |
Water imperme
ability class |
Profile heat insulation | Wind load resistance | Glass
Thickness |
| 60 | 2 | TPE | 4 | 38 | 4 | 9A | 1.63
W/m2 ºK |
C3 | 5, 20, 24,
32 |
- Under tests carried out with 600 Pa (110 km/h) wind load and 4 liters of rainwater per minute, the system did not leak any water inside and proved its high quality.
- Heat insulation
- By means of the chamber numbers, chamber widths and profile heights developed in consideration of the profile width, DIAMOND 60 system is able to meet all requirements regarding the thermal conductivity coefficient.
- In accordance with the TS EN ISO 10077-2 standard, the window system with the dimensions of 1,23 m x 1,43 m has achieved the values of Uw:1,46 W/m2 ºK and Uf:1,63 W/m2 ºK.
- Sound insulation
- DIAMOND 60 Series provides sound insulation with values up to 38 dB. Therefore, it is possible to create a sound environment at a high quality life level even at the loudest places.
- The sound insulation level to be acquired via acoustic glasses that can be used with the system, isolates the outside noise of outdoors from indoors in the most efficient way.

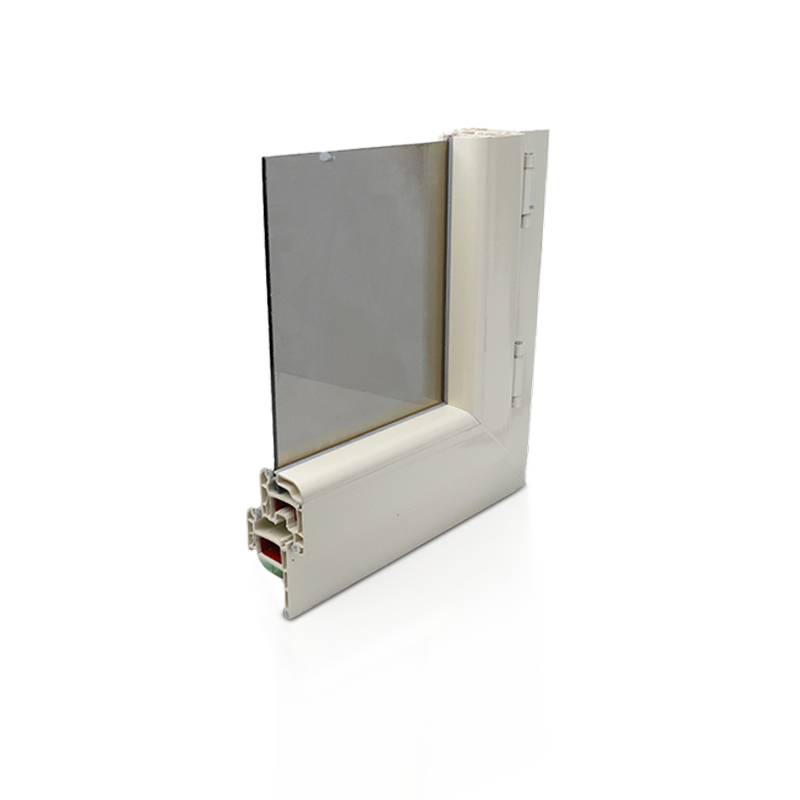

MAIN PROFILES
- Main Profile & Efficiency
- Wind Load Resistance
- DIAMOND 60 systems successfully passed the safety test of 2.000 Pa (1655 km/h) wind load resistance.
- Wind Load Resistance
| Profile Width | Number of Chambers | Profile Heat Insulation | Window Heat Insulation | Sound Insulation |
|---|---|---|---|---|
| 60 mm | 4 | 1,46 W/m2 ºK | 1,63 W/m2 ºK | 38 db |
| Air Permeability Class | Water Impermeability Class | Wind Load Resistance Class | Glass Thickness (mm) |
|---|---|---|---|
| 4 | 9A | C3 | 5, 20, 24, 32 |
- Under tests carried out with 600 Pa (110 km/h) wind load and 4 liters of rainwater per minute, the system did not leak any water inside and proved its high quality.
- Heat insulation
- By means of the chamber numbers, chamber widths and profile heights developed in consideration of the profile width, DIAMOND 60 system is able to meet all requirements regarding the thermal conductivity coefficient.
- In accordance with the TS EN ISO 10077-2 standard, the window system with the dimensions of 1,23 m x 1,43 m has achieved the values of Uw:1,46 W/m2 ºK and Uf:1,63 W/m2 ºK.
- Sound insulation
- DIAMOND 60 Series provides sound insulation with values up to 38 dB. Therefore, it is possible to create a sound environment at a high quality life level even at the loudest places.
- The sound insulation level to be acquired via acoustic glasses that can be used with the system, isolates the outside noise of outdoors from indoors in the most efficient way.
- Heat insulation
